CDL Stainless Steel Vertical Multistage Pump - CLOUD SAIL INTERNATIONAL LIMITED

Overview

CDL/CDLF is a multifunctional product that can transport various media from tap water to industrial liquids, and is suitable for different temperature, flow and pressure ranges. CDL is suitable for non-corrosive liquids, and CDLF is suitable for mildly corrosive liquids.

Application

Water supply: water plant filtration and transmission, water plant divisional water supply, main pressurization, high-rise building pressurization.
Industrial booster: process water system, cleaning system, high pressure flushing system, fire fighting system.
Industrial liquid transportation: cooling and air conditioning systems, boiler feed water and condensing systems, machine tool accessories, acids and alkalis.
Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
Irrigation: farmland irrigation, sprinkler irrigation, drip irrigation.

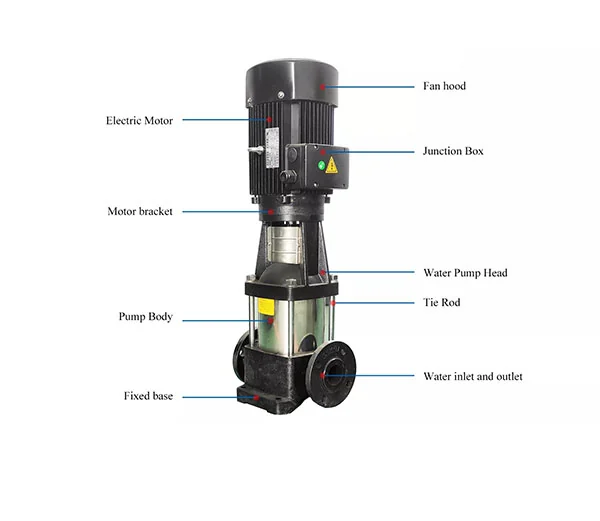

Structure

CDL/CDLF is a non-self-priming multi-stage centrifugal pump with standard motor. The motor shaft is directly connected to the pump shaft through the pump head with a shaft coupling, and the tie rod bolts fix the pressure-resistant cylinder and the overflow parts on the pump head and the water inlet and outlet sections. In between, the pump inlet and outlet are on the same line at the bottom of the pump; the pump can be equipped with an intelligent protector as required to effectively protect the pump from dry running, phase loss, and overload.

Performance parameter

Model	Head	Flow	Motor Power	Rotating speed
Model	（m）	（m3/h）	（KW）	（r/min）
CDL1-2	11.5	1	0.37	2900
CDL1-3	17	1	0.37	2900
CDL1-4	22.5	1	0.37	2900
CDL1-5	28	1	0.37	2900
CDL1-6	33.5	1	0.37	2900
CDL1-7	39	1	0.37	2900
CDL1-8	45	1	0.55	2900
CDL1-9	51	1	0.55	2900
CDL1-10	57	1	0.55	2900
CDL1-17	95	1	1.1	2900
CDL1-19	106	1	1.1	2900
CDL1-21	117	1	1.1	2900
CDL1-23	128	1	1.1	2900
CDL1-25	139	1	1.5	2900
CDL1-27	150	1	1.5	2900
CDL1-30	166	1	1.5	2900
CDL1-33	183	1	2.2	2900
CDL1-36	200	1	2.2	2900
CDL2-2	15	2	0.37	2900
CDL2-3	22	2	0.37	2900
CDL2-4	30	2	0.55	2900
CDL2-5	37	2	0.55	2900
CDL2-6	45	2	0.75	2900
CDL2-7	52	2	0.75	2900
CDL2-9	67	2	1.1	2900
CDL2-11	82	2	1.1	2900
CDL2-13	98	2	1.5	2900
CDL2-15	112	2	1.5	2900
CDL2-18	136	2	2.2	2900
CDL2-22	165	2	2.2	2900
CDL2-26	198	2	3.0	2900
CDL3-2	9	3	0.37	2900
CDL3-3	14	3	0.37	2900
CDL3-4	19	3	0.37	2900
CDL3-5	23	3	0.37	2900
CDL3-6	28	3	0.55	2900
CDL3-7	32	3	0.55	2900
CDL3-8	37	3	0.75	2900
CDL3-9	42	3	0.75	2900
CDL3-10	47	3	0.75	2900
CDL3-11	51	3	1.1	2900
CDL3-12	55	3	1.1	2900
CDL3-13	60	3	1.1	2900
CDL3-15	69	3	1.1	2900
CDL3-17	79	3	1.5	2900
CDL3-19	88	3	1.5	2900
CDL3-21	98	3	2.2	2900
CDL3-23	107	3	2.2	2900
CDL3-25	116	3	2.2	2900
CDL3-27	124	3	2.2	2900
CDL3-29	133	3	2.2	2900
CDL3-31	142	3	3	2900
CDL3-33	151	3	3	2900
CDL3-36	168	3	3	2900
CDL4-2	15	4	0.37	2900
CDL4-3	24	4	0.55	2900
CDL4-4	32	4	0.75	2900
CDL4-5	40	4	1.1	2900
CDL4-6	48	4	1.1	2900
CDL4-7	56	4	1.5	2900
CDL4-8	64	4	1.5	2900
CDL4-10	81	4	2.2	2900
CDL4-12	95	4	2.2	2900
CDL4-14	112	4	3	2900
CDL4-16	129	4	3	2900
CDL4-19	153	4	4	2900
CDL4-22	178	4	4	2900
CDL8-2/1	9	8	0.75	2900
CDL8-2	18	8	0.75	2900
CDL8-3	27	8	1.1	2900
CDL8-4	36	8	1.5	2900
CDL8-5	45	8	2.2	2900
CDL8-6	54	8	2.2	2900
CDL8-8	73	8	3.0	2900
CDL8-10	92	8	4.0	2900
CDL8-12	111	8	4.0	2900
CDL8-14	130	8	5.5	2900
CDL8-16	148	8	5.5	2900
CDL8-18	167	8	7.5	2900
CDL8-20	186	8	7.5	2900
CDL12-2	20	12	1.5	2900
CDL12-3	30	12	2.2	2900
CDL12-4	40	12	3	2900
CDL12-5	50	12	3	2900
CDL12-6	60	12	4	2900
CDL12-7	70	12	5.5	2900
CDL12-8	80	12	5.5	2900
CDL12-9	91	12	5.5	2900
CDL12-10	101	12	7.5	2900
CDL12-12	121	12	7.5	2900
CDL12-14	141	12	11	2900
CDL12-16	162	12	11	2900
CDL12-18	183	12	11	2900
CDL16-2	22	16	2.2	2900
CDL16-3	34	16	3.0	2900
CDL16-4	46	16	4.0	2900
CDL16-5	58	16	5.5	2900
CDL16-6	70	16	5.5	2900
CDL16-7	82	16	7.5	2900
CDL16-8	94	16	7.5	2900
CDL16-10	118	16	11	2900
CDL16-12	141	16	11	2900
CDL16-14	166	16	15	2900
CDL16-16	189	16	15	2900
CDL20-1	10	20	1.1	2900
CDL20-2	23	20	2.2	2900
CDL20-3	35	20	4.0	2900
CDL20-4	47	20	5.5	2900
CDL20-5	58	20	5.5	2900
CDL20-6	70	20	7.5	2900
CDL20-7	82	20	7.5	2900
CDL20-8	94	20	11	2900
CDL20-10	118	20	11	2900
CDL20-12	142	20	15	2900
CDL20-14	166	20	15	2900
CDL20-17	202	20	18.5	2900
CDL32-10-1	9	32	1.5	2900
CDL32-10	13	32	2.2	2900
CDL32-20-2	20	32	3.0	2900
CDL32-20	27	32	4.0	2900
CDL32-30-2	33	32	5.5	2900
CDL32-30	40	32	5.5	2900
CDL32-40-2	46	32	7.5	2900
CDL32-40	53	32	7.5	2900
CDL32-50-2	60	32	11	2900
CDL32-50	67	32	11	2900
CDL32-60-2	74	32	11	2900
CDL32-60	81	32	11	2900
CDL32-70-2	88	32	15	2900
CDL32-70	95	32	15	2900
CDL32-80-2	102	32	15	2900
CDL32-80	109	32	15	2900
CDL32-90-2	117	32	18.5	2900
CDL32-90	124	32	18.5	2900
CDL32-100-2	131	32	18.5	2900
CDL32-100	138	32	18.5	2900
CDL32-110-2	146	32	22	2900
CDL32-110	153	32	22	2900
CDL32-120-2	160	32	22	2900
CDL32-120	167	32	22	2900
CDL32-130-2	174	32	30	2900
CDL32-130	181	32	30	2900
CDL32-140-2	189	32	30	2900
CDL32-140	196	32	30	2900
CDL42-10-1	16	42	3.0	2900
CDL42-10	20	42	4.0	2900
CDL42-20-2	32	42	5.5	2900
CDL42-20	41	42	7.5	2900
CDL42-30-2	52	42	11	2900
CDL42-30	61	42	11	2900
CDL42-40-2	73	42	15	2900
CDL42-40	81	42	15	2900
CDL42-50-2	93	42	18.5	2900
CDL42-50	101	42	18.5	2900
CDL42-60-2	113	42	22	2900
CDL42-60	122	42	22	2900
CDL42-70-2	134	42	30	2900
CDL42-70	142	42	30	2900
CDL42-80-2	154	42	30	2900
CDL42-80	162	42	30	2900
CDL42-90-2	174	42	30	2900
CDL42-90	183	42	37	2900
CDL42-100-2	194	42	37	2900
CDL42-100	203	42	37	2900
CDL42-110-2	217	42	45	2900
CDL42-110	225	42	45	2900
CDL42-120-2	238	42	45	2900
CDL42-120	247	42	45	2900
CDL42-130-2	259	42	45	2900
CDL65-10-1	13	65	4.0	2900
CDL65-10	20	65	5.5	2900
CDL65-20-2	26	65	7.5	2900
CDL65-20-1	33	65	11	2900
CDL65-20	40	65	11	2900
CDL65-30-2	46	65	15	2900
CDL65-30-1	53	65	15	2900
CDL65-30	60	65	18.5	2900
CDL65-40-2	66	65	18.5	2900
CDL65-40-1	73	65	22	2900
CDL65-40	80	65	22	2900
CDL65-50-2	88	65	30	2900
CDL65-50-1	95	65	30	2900
CDL65-50	102	65	30	2900
CDL65-60-2	110	65	30	2900
CDL65-60-1	117	65	37	2900
CDL65-60	124	65	37	2900
CDL65-70-2	132	65	37	2900
CDL65-70-1	139	65	37	2900
CDL65-70	146	65	45	2900
CDL65-80-2	154	65	45	2900
CDL65-80-1	161	65	45	2900
CDL85-10-1	14	85	5.5	2900
CDL85-10	20	85	7.5	2900
CDL85-20-2	30	85	11	2900
CDL85-20	41	85	15	2900
CDL85-30-2	52	85	18.5	2900
CDL85-30	64	85	22	2900
CDL85-40-2	75	85	30	2900
CDL85-40	86	85	30	2900
CDL85-50-2	98	85	37	2900
CDL85-50	110	85	37	2900
CDL85-60-2	122	85	45	2900
CDL85-60	134	85	45	2900
CDL120-10	18.5	120	11	2950
CDL120-20-1	34.5	120	18.5	2950
CDL120-20	40	120	22	2950
CDL120-30	61	120	30	2950
CDL120-40-1	76	120	37	2950
CDL120-50-1	97	120	45	2950
CDL120-60-1	118	120	55	2950
CDL120-70	145	120	75	2950
CDL150-10-1	12.5	150	11	2950
CDL150-10	18.5	150	15	2950
CDL150-20-1	35	150	22	2950
CDL150-30-2	49	150	30	2950
CDL150-30	63	150	37	2950
CDL150-40-1	77	150	45	2950
CDL150-50-2	92	150	55	2950
CDL150-60	130	150	75	2950
